Series MHM

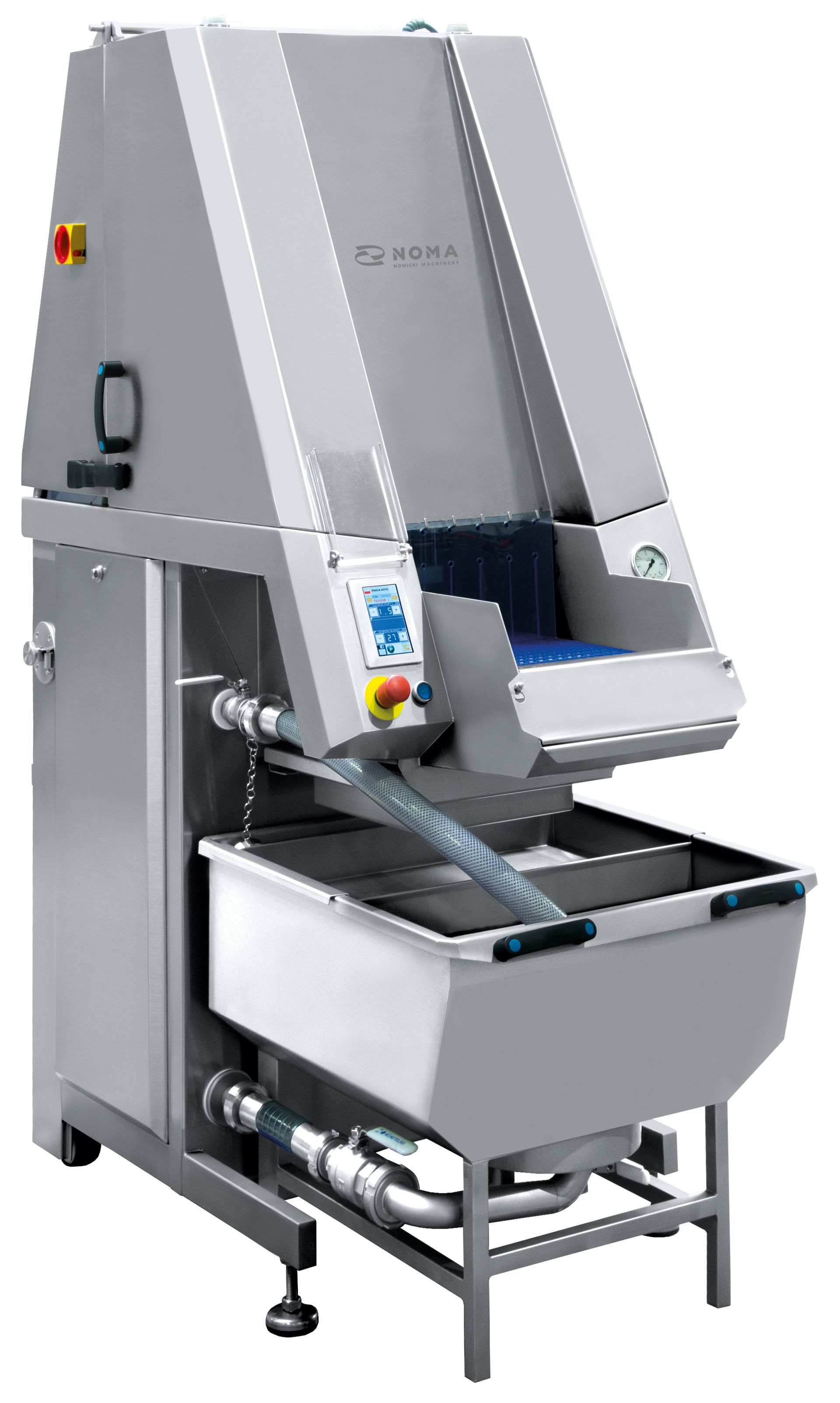

A stainless steel machine with a sink attached to it.

Mechanical Brine Injectors

Needles

21 - 204

Needles

Conveyor Width

13 - 21
In.

Integrated Brine Tank and Filtration System: Equipped with an under-machine brine tank that supplies the injector, with excess brine filtered and recirculated back into the tank for efficient operation.

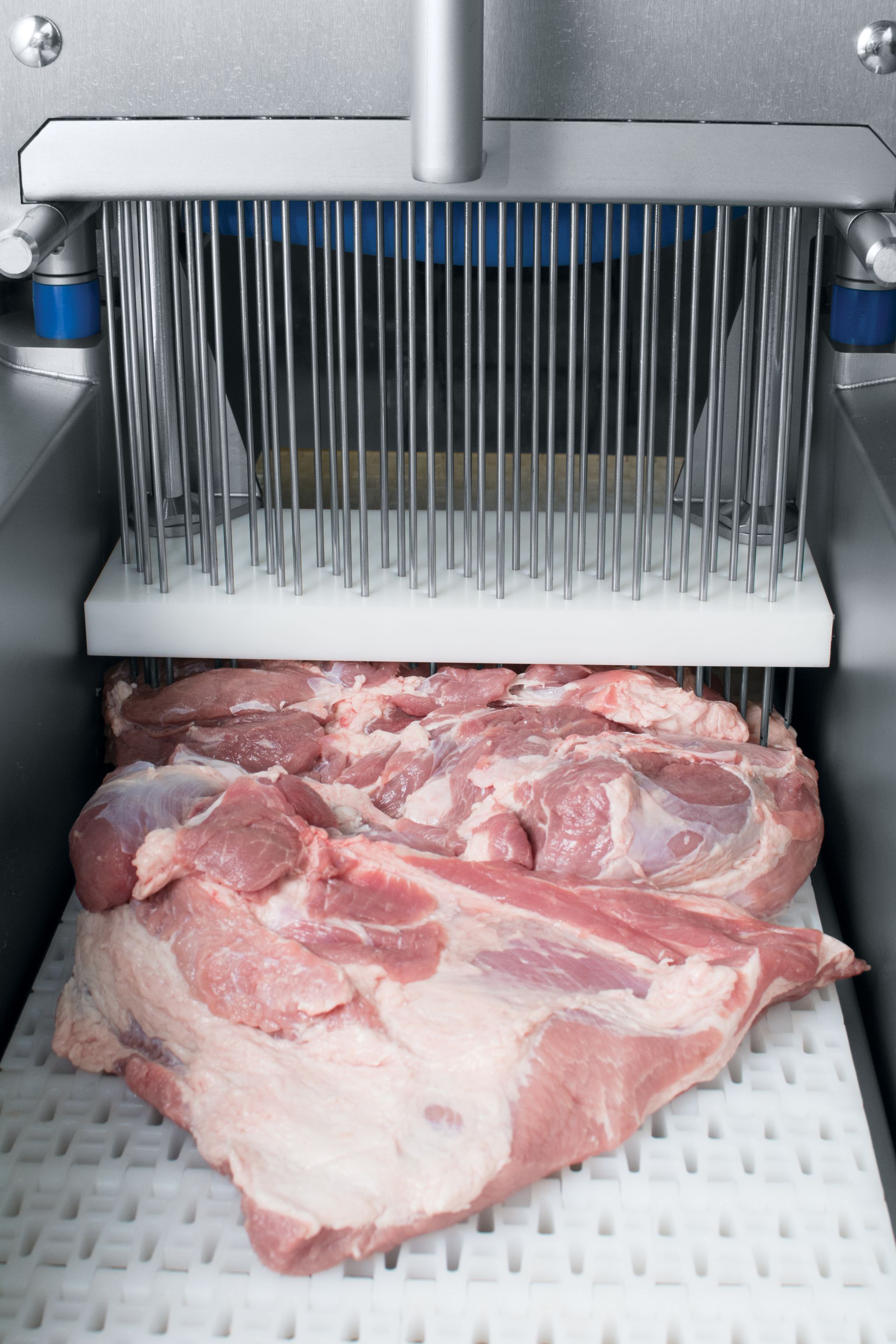

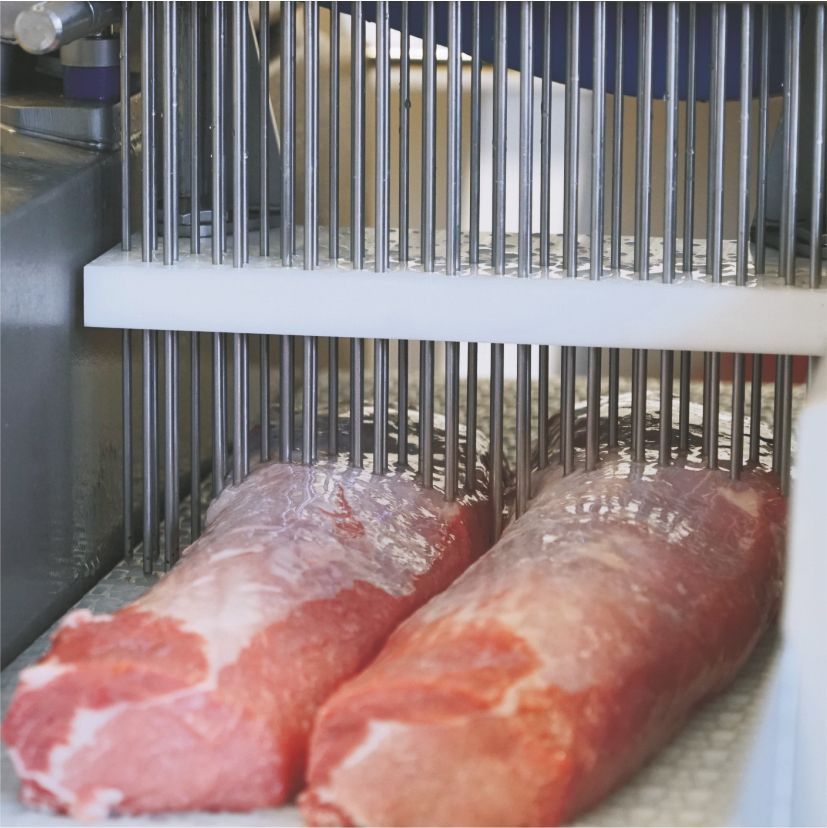

Bone-In or Boneless Capability: The machine is designed to efficiently handle both bone-in and boneless products, offering versatility for various processing needs.

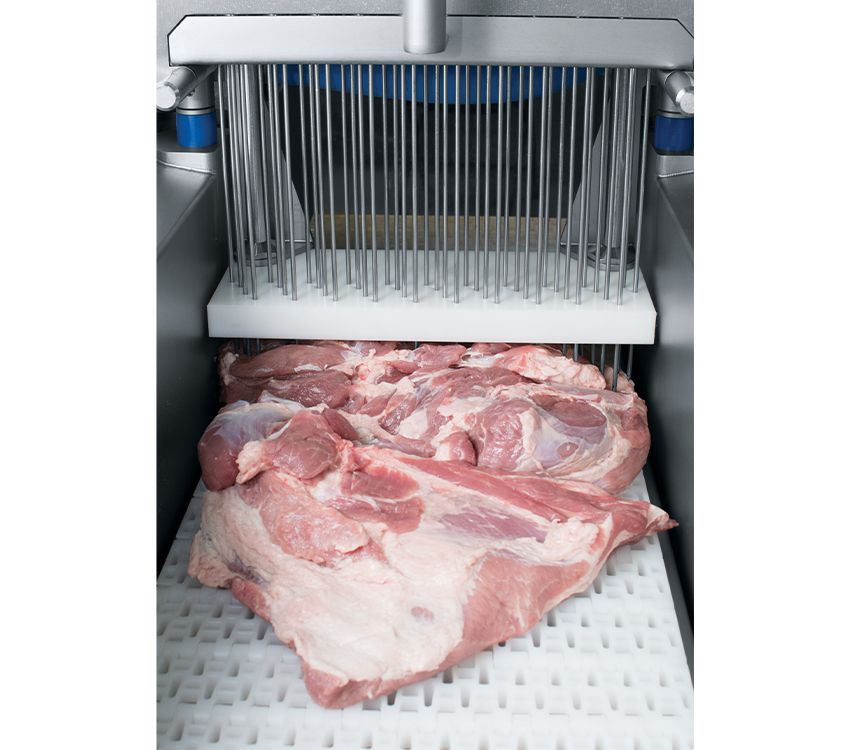

Advanced Parameter Control: Easily adjust variable injection parameters such as injection head speed and brine pump pressure, allowing for any value within the machine’s range. Conveyor speed offers 3 or 4 preset settings, depending on the model, to ensure optimal performance tailored to your specific needs.

Needle Configuration: Each needle socket can be fitted with a single, double, triple, or quadruple needle, allowing customization based on specific needs.

ADD TO INQUIRY

Durable, Industrial-Grade Construction:

Built entirely from stainless steel for exceptional durability and long-lasting performance in demanding environments.

Advanced Programmable Control Panel:

Intuitive touch screen allows operators to create and store custom programs by adjusting variables such as injection head speed and brine pump pressure.

Easy Cleaning and Maintenance:

Thoughtfully designed to make routine cleaning and maintenance straightforward and efficient. The needle head and individual needles can easily be removed for cleaning and maintenance.

Technical Information

MHM 21/84 Product Details

Needle Sockets 21

Needle Range 21-84

Conveyor Width (in.) 12.8

Injection Volume (%) 6% - 55%

Length (in.) 56.7

Width (in.) 29.9

Height (in.) 72.4

Weight (Lbs.) 728

MHM 39/156 Product Details

Needle Sockets 39

Needle Range 39-156

Conveyor Width (in.) 14.8

Injection Volume (%) 6% - 55%

Length (in.) 69.7

Width (in.) 33.1

Height (in.) 78.7

Weight (Lbs.) 948

MHM 68/204 Product Details

Needle Sockets 68

Needle Range 68-204

Conveyor Width (in.) 20.7

Injection Volume (%) 6% - 55%

Length (in.) 71.7

Width (in.) 39

Height (in.) 77.6

Weight (Lbs.) 1080

Applications

NOMA Mechanical Brine Injectors are designed for brine injection of a variety of products, including bone-in or boneless meats, whole poultry and poultry parts, as well as fish and fish fillets. This system ensures consistent flavor and moisture throughout.
